Quad Artera Stereo Power

Amplificador de Potência

General Description Power Amplifier
Rated Output Power 140W 8 ohm (<1% THD,1kHz)
Total Harmonic Distortion <0.003% (100W, 1kHz)
<0.03% (100W, 20Hz-20kHz)
Frequency Response -0.5dB (20Hz-20kHz, ref. 1kHz)
-3dB (20Hz-70kHz, ref. 1kHz)
Input Sensitivity 980mV(RCA line in)
Input Impedance 10kohm (Balanced)
15kohm (Unbalanced)
Signal to Noise Ration(S/N) 115dB (A weighted, ref. 140W)
Maximum Power Consumption 750W

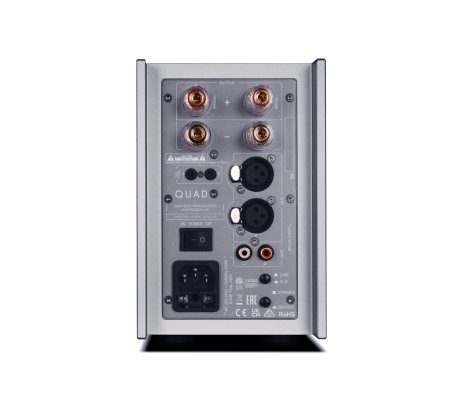

Inputs 2 x XLR, RCA
Outputs Speaker A+B
Standby Power Consumption <0.5W
Dimensions (W x H x D) 320 x 158 x 338mm
Weight 15kg
