Musical Fidelity NUVISTA PRE – Preamplificador

Pre Amplifier

• Output Voltage: 28 Vrms
• Output Current: 1 Amp peak to peak
• Output impedance: <47Ω
• THD+N: < 0.002 % typical, 20Hz to 20 kHz
• Signal / noise ratio: >120dB, 20Hz – 20kHz
• Gain: 2.15x (normal); 4.3x (+6dB enabled); volume maximum
• Input impedance: 100 k Ohms
• Overload margin: 24dB
• Channel separation: >100dB, 20Hz – 20kHz
• Frequency response: + 0, –1dB, 5Hz to 100 kHz

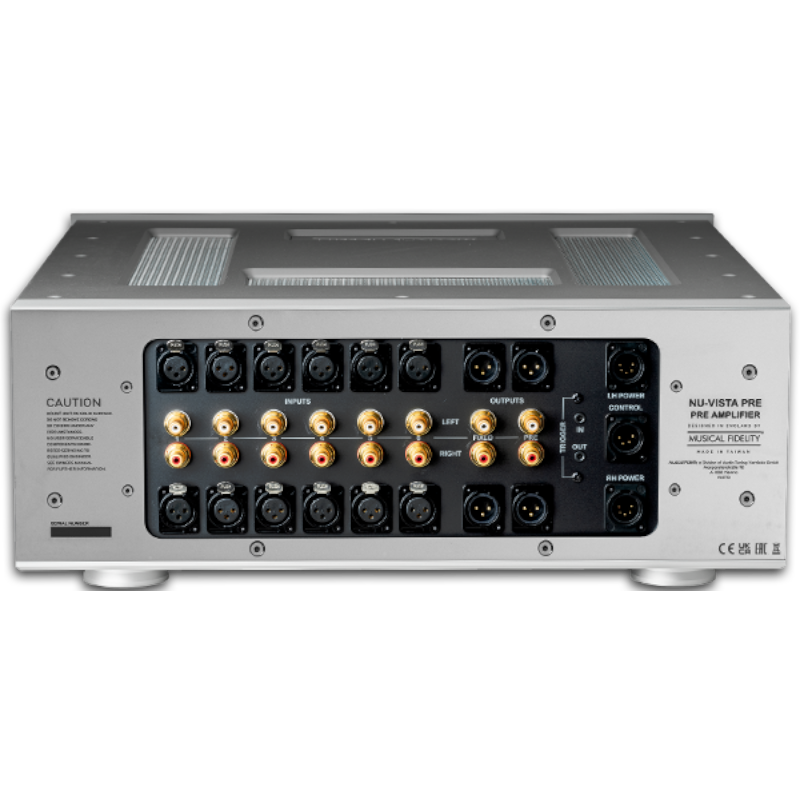

In & Output

• 12 independent inputs: 6x RCA & 6x XLR
• Variable Pre output: 1x RCA & 1x XLR
• Fixed output: 1x RCA & 1x XLR
• Trigger input and output: 3.5mm mono jack socket
• Trigger level ±5V to ±12V

General Information

• Remote Control included
• Weight PRE: 22kg net (30kg)
• Weight PRE PSU: 25kg net (34kg)
• Dimensions PRE (WxHxD): 483 x 187,5 x 491 (506 with connectors)
• Dimensions PRE PSU (WxHxD): 483 x 187,5 x 475 (478 with connectors)
• Mains voltages: 115/230VAC 50/60Hz (factory pre-set); 100VAC 50/60Hz (alternative)
• Consumption <0.5W in standby mode; 65W maximum
