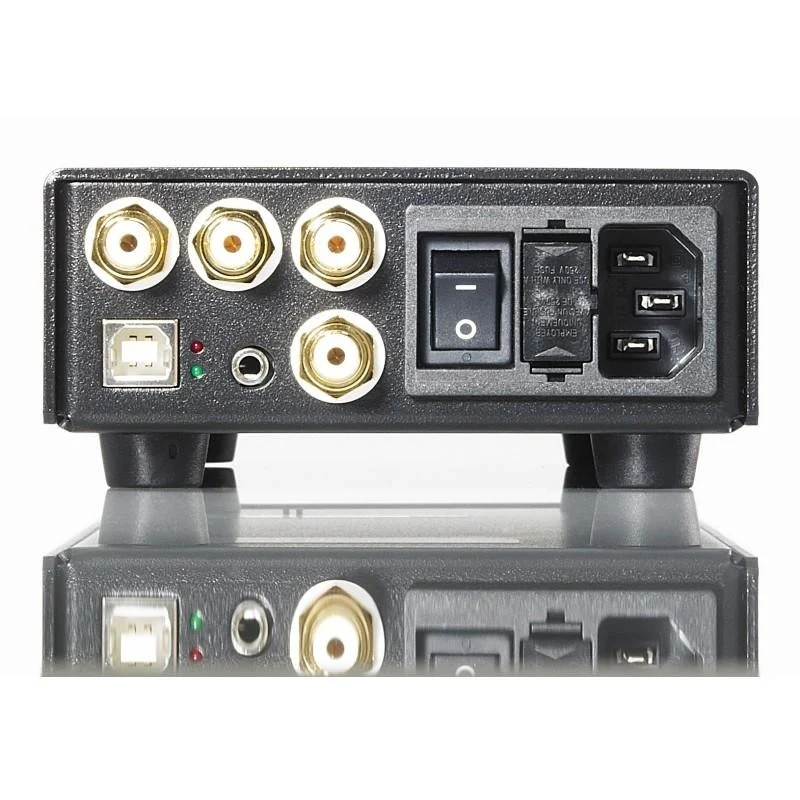

Lehmannaudio Linear USB – Amplificador Auscultadores

– Input impedance – 47 kohms
– Max. gain – 0 dB, 10 dB, 20 dB selectable via DIP switches on the bottom side
– Frequency response – 10 Hz (-0.3 dB) to 35 kHz (-1 dB)
– Signal to noise ratio – >95 dB at 0 dB gain (analogue)
– THD – <0.001 % at 6 mW/300 ohms
– Channel separation – >70 dB/10 kHz
– Output power – 200 mW/300 ohms, 400 mW/60 ohms
– Output impedance – Line Out 60 ohms, Headphone Out 5 ohms
– Outer dimensions – 280 x 110 x 44 mm³ (housing only)
– Connectors (audio) – Neutrik headphone sockets, 6.35 mm with gold-plated contacts, 1x parallel to Line Out, 1x Line Out muting, Gold plated RCA sockets with teflon insulation
– Weight – app. 1.5 kg
