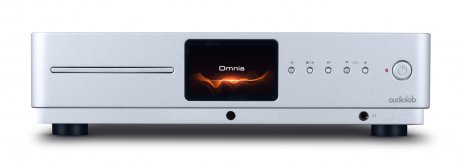

Audiolab Omnia

General Description Integrated Amplifier
Design Philosophy and Core Technology 2x50W (8ohm) / 2x75W (4ohm) Class AB
ES9038Q2M 32-bit DAC
– 4.3″ (800x480mm) large size full view IPS LCD
Built in certified hardware MQA Full decoder (PC USB, Coax/Optical)
CD playback compatible with CD, CD-R, CD-RW discs
USB memory device support (MP3/WMA/AAC/WAV)
DTS Play-Fi technology (IEEE 802.11 a/b/g/n/ac)
Streaming service support includes Amazon Music, Spotify, TIDAL, KKBox, SiriusXM, Napster, Internet Radio, Deezer, iHeartRadio, PANDORA, Qobuz, QQmusic and more
Multi-room / multi speaker group support
Bluetooth 5.0 (aptX/aptX LL) streaming
Low Noise Moving Magnet Phono stage
Dedicated Current-Feedback Headphone AMP
Integrated / PRE-POWER / PRE only Modes
Android / iOS / Kindle Fire / Windows PC Control Support
USB firmware upgrade input
Inputs 3 x Analogue, 1 x Phono (MM) , 1 x Power Amplifier, 2 x SPDIF (Coax),
2 x SPDIF (Optical), 1 x DTS Play-Fi Streaming, 1xPC USB(USB B),
1xUSB HDD(USB A), 1 x Bluetooth(aptX/aptX LL), 1 x 12V Trigger
Outputs 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency Optical / Coaxial:44.1kHz —192kHz
Optical / Coaxial: 44.1kHz —192kHz
PC USB: 44.1kHz – 768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
Gain +8dB (Line)
+47dB (Phono MM)
Input Sensitivity 720mV (Line, Volume = 0dB)
3.1mV (Phone MM, Volume=0dB)
Input Impedance 10K (Line)
47K // 100pF (Phono MM)
Total Harmonic Distortion (THD) < 0.0004% (1KHz @ 2V, Volume = 0dB)
Frequency Response 20Hz-20kHz (+/-0.1dB)
Output Voltage 2.3V max. (Volume = 0dB)
Output Impedance 100 ohm
Signal-to-Noise Ratio >110dB (Line,A-weighted)
76dB (Phono MM,A-weighted)
DAC
D to A Converte ES9038Q2M
Total Harmonic Distortion (THD) < 0.0006% (1KHz @ 0dBFS)
Output level (0dBFS, 1KHz) 2.1Vrms
Max. Sampling Frequency Optical, Coaxial: 192KHz
Ethernet,Wi-Fi: 192KHz
USB A：48kHz
PC USB: PCM768kHz, DSD512
Signal-to-noise Ratio (S/N) 114dB (A-weighted)
Power Amplifier Section
Gain +29dB
Rated Power Output 2 x 50W (8 ohm, THD < 1%)
2 x 75W (4 ohm, THD < 1%)
Frequency Response 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) < 0.003% (1kHz @ 40W / 8ohm)
Input Sensitivity 720mV
Signal-to-Noise Ratio (S/N) 110dB (A – weighted)
Max. Output Current 9A
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW )
Output Impedance 10ohm
Load impedance 20-600 ohm
General
Standby Power Consumption < 0.5W
Net Weight 9.1kg
Gross Weight 11kg
Dimensions (mm) (W x H x D) 440 x156 x 327
Carton Size (mm) (W x H x D) 540 x 412 x 210
Finish Black / Silver
Power Requirements (depending on region) 220-240V ~ 50/ 60Hz
100-120V ~ 50/ 60Hz
Standard Accessories Power Cord, Remote Control,User Manual, Antennas, etc.
