Audiolab 7000A – Amplificador

General Description Integrated Amplifier
Design Philosophy and Core Technology – 2 x 70W (8 ohms) / 2 x 110W (4 ohms) Class AB
– ES9038Q2M 32-bit DAC
– 2.8″ (480x640mm) Full View IPS LCD
– Built in Certified Hardware MQA Full Decoder (PC USB, Coax / Optical)
– Bluetooth 5.0 (aptX / aptX LL) Support
– Low Noise Moving Magnet Phono Stage
– Dedicated Current-Feedback Headphone amp
– Integrated / PRE-POWER / PRE only Modes
– VU Digital / VU Analogue Meter
– USB Upgrade Support
Inputs 3 x Analogue, 1 x Phono (MM), 1 x Power Amplifier,
2 x SPDIF (Coax), 2 x SPDIF (Optical), 1 x HDMI ARC,
1 x PC USB (USB B), 1 x Bluetooth (aptX/aptX LL), 1 x 12V Trigger
Outputs 1 x PRE Amplifier, 1 x Stereo Speaker, 1 x Headphone, 1 x 12V Trigger
Sampling Frequency Optical / Coaxial: 44.1kHz – 192kHz;
PC USB: 44.1kHz-768kHz (PCM) / DSD64, DSD128, DSD256, DSD512
Preamplifier Section
Gain +6dB (Line); +55dB (Phono MM)
Input Sensitivity 820mV (Line, Volume = 0dB); 3.1mV (Phone MM, Volume = 0dB)
Input Impedance 10K (Line); 47K // 100pF (Phono MM)
Total Harmonic Distortion (THD) < 0.0005% (1kHz @ 2V, Volume = 0dB)
Frequency Response 20Hz-20kHz (+/-0.1dB)
Output Voltage 2.3V max. (Volume = 0dB)
Output Impedance 100 ohms
Signal-to-Noise Ratio > 110dB (Line, A-weighted); > 76dB (Phono MM, A-weighted
DAC
D to A Converter ES9038Q2M
Total Harmonic Distortion (THD) < 0.0005% (1KHz @ 0dBFS)
Output Level (0dBFS, 1kHz) 2.1Vrms
Max. Sampling Frequency Optical, Coaxial: 192kHz;
PC USB: PCM768kHz, DSD512
Power Amplifier Section
Gain +29dB
Rated Power Output 2 x 70W (8 ohms, THD<1%); 2 x 110W (4 ohms, THD<1%)
Frequency Response 20Hz-20kHz (+/-0.3dB)
Total Harmonic Distortion (THD) <0.003% (1kHz @ 40W / 8 ohms)
Input Sensitivity 720mV
Signal-to-Noise Ratio (S/N) > 110dB (A-weighted)
Max. Output Current 9A
Headphone Amplifier
Total Harmonic Distortion (THD) < 0.01% (1kHz, 50mW)
Output Impedance 4.7 ohms
Load Impedance 20-600 ohms
General
Standby Power Consumption <0.5W
Net Weight 8.4kg
Gross Weight 10.7kg
Dimensions (mm) (W x D x H) 444 x 340 x 78
Carton Size (mm) (W x D x H) 500 x 455 x 140

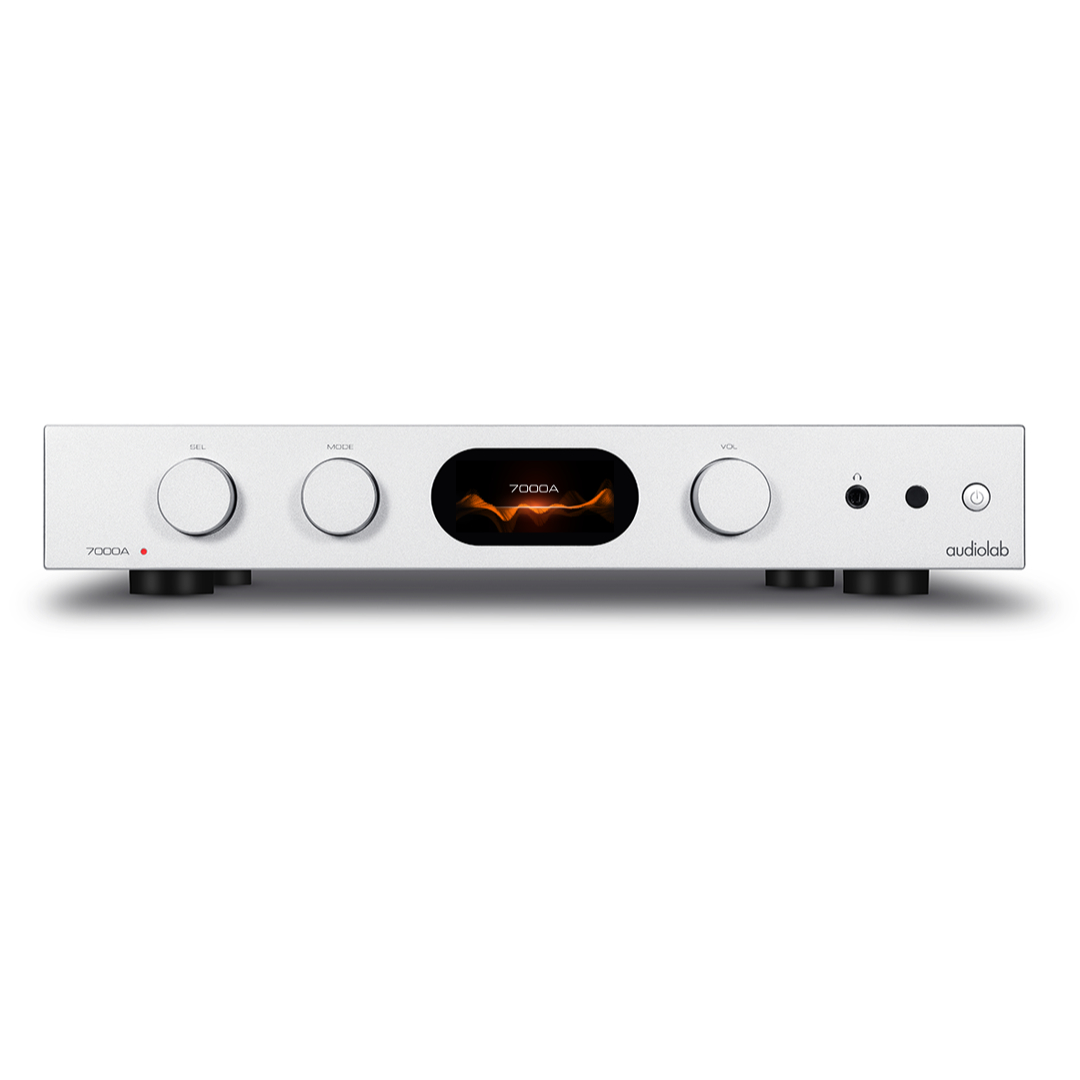

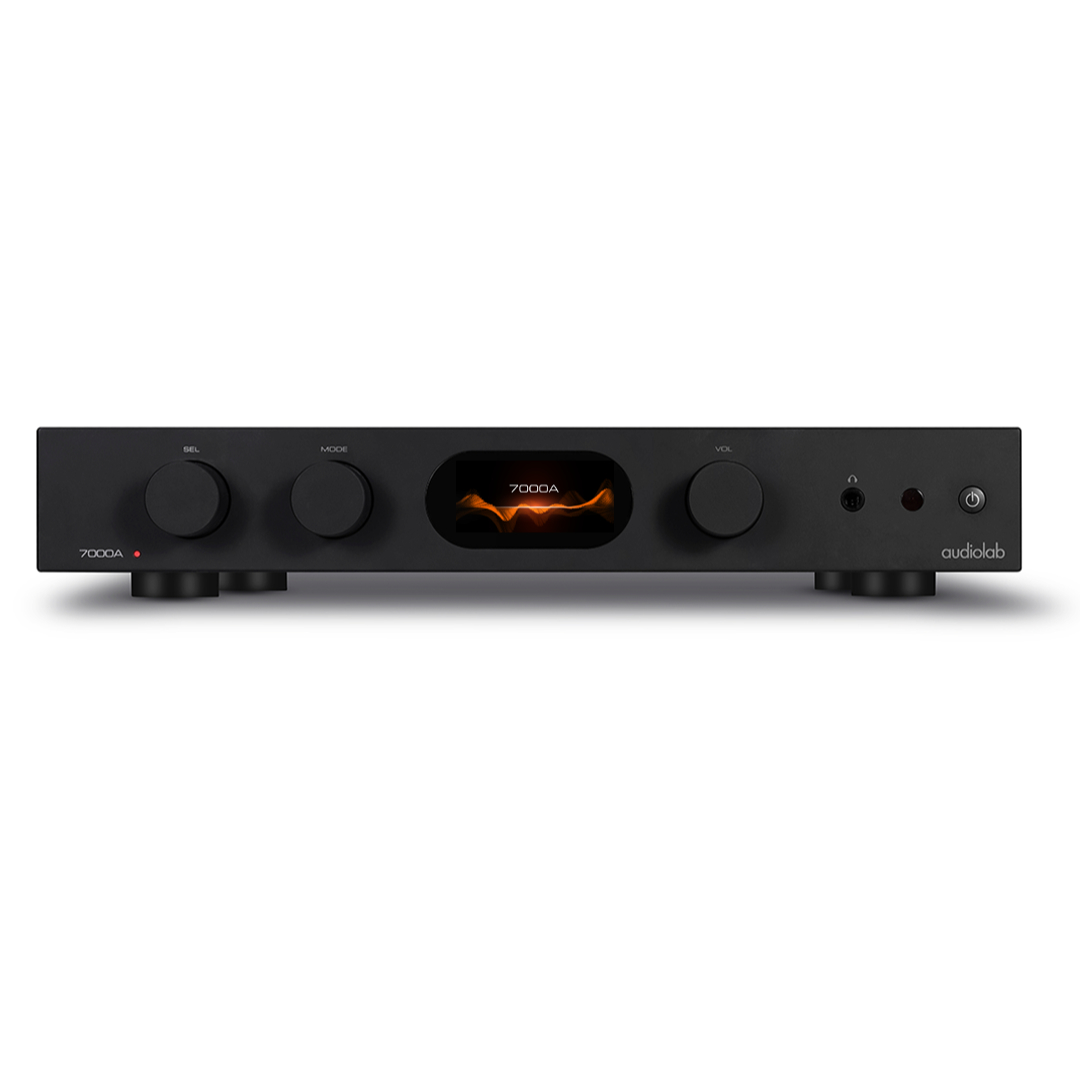

Finish Black / Silver
Power Requirements 220-240V ~ 50/ 60Hz;
(depending on region) 100-120V ~ 50/ 60Hz

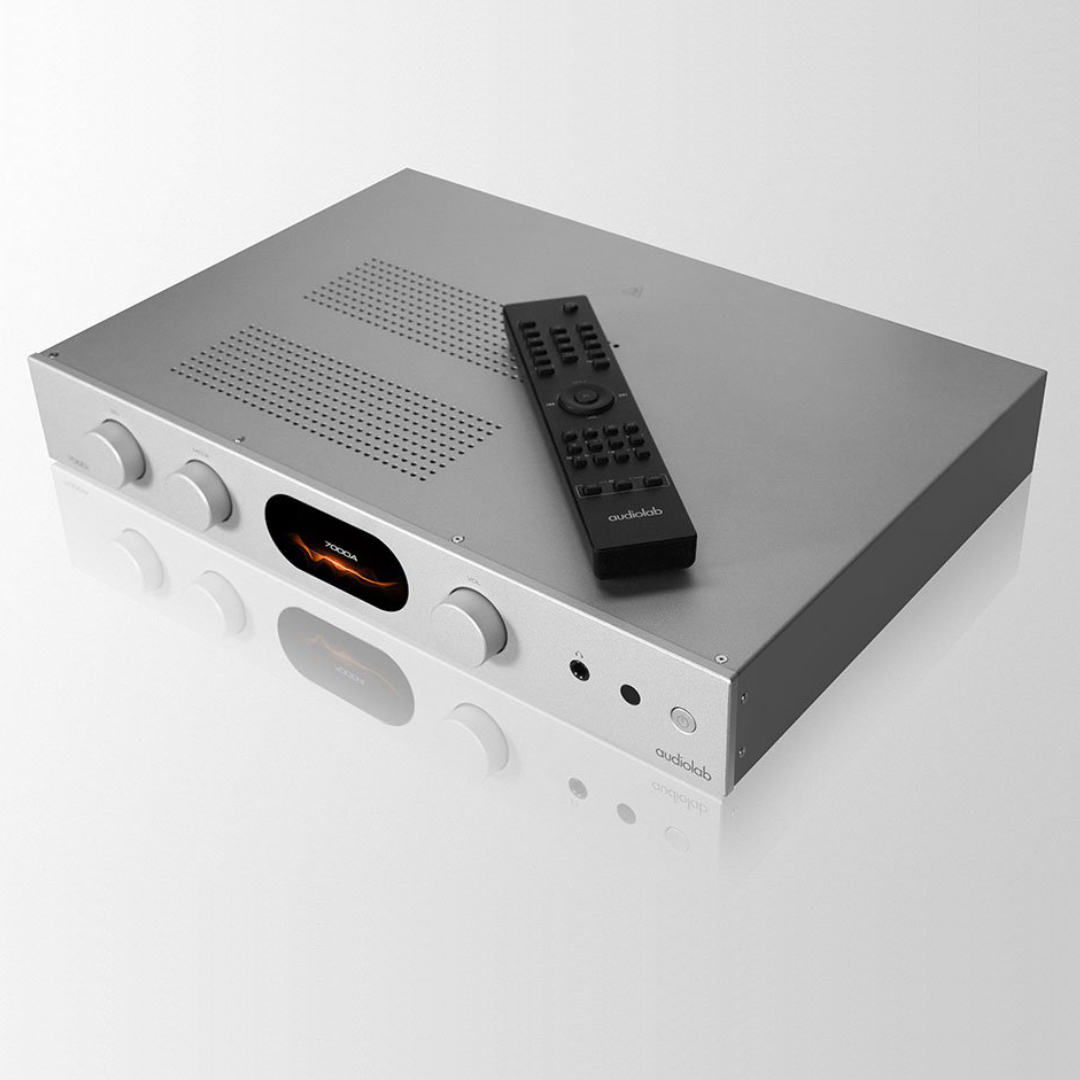

Standard Accessories Power Cord, Remote Control, User Manual, Antennas, etc.
