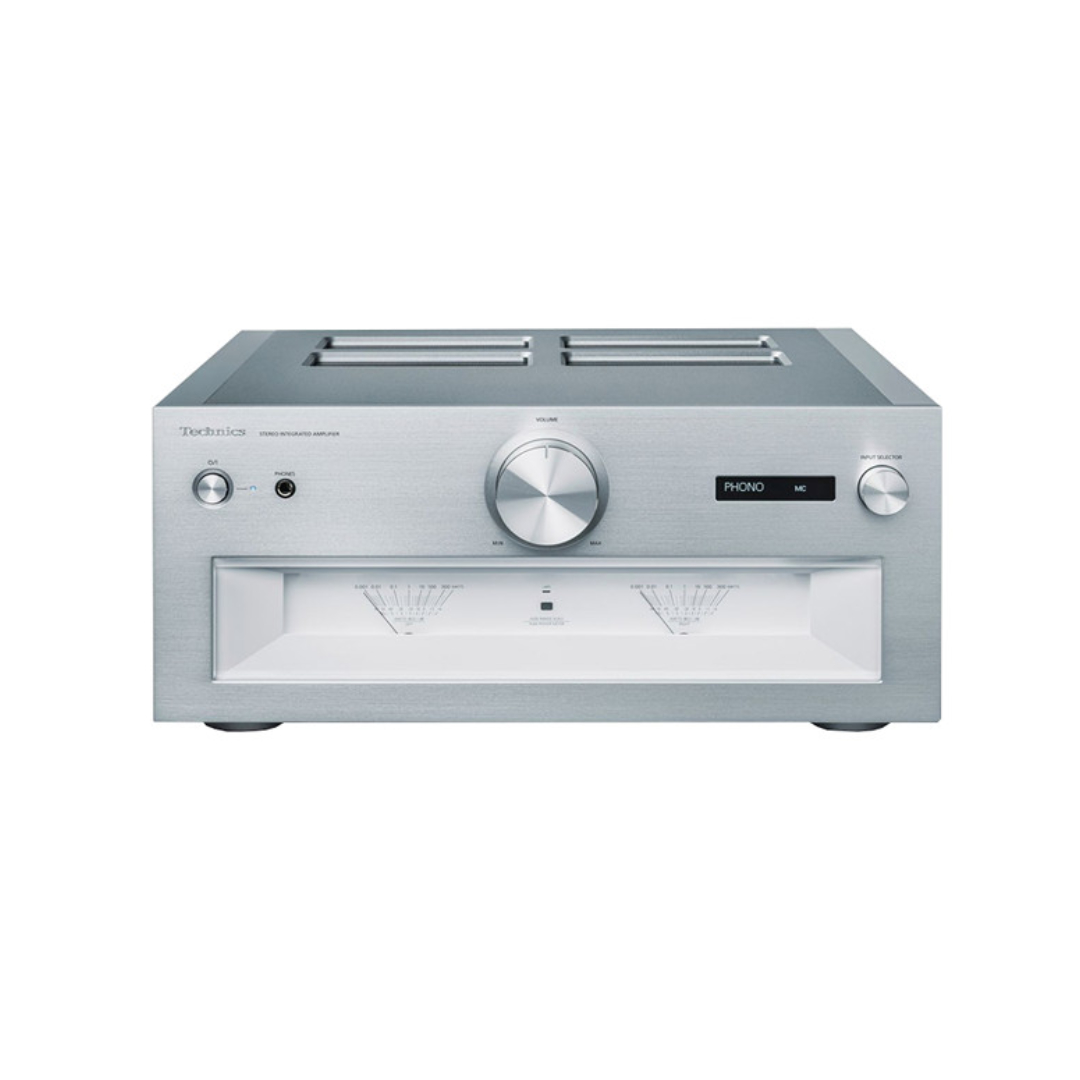

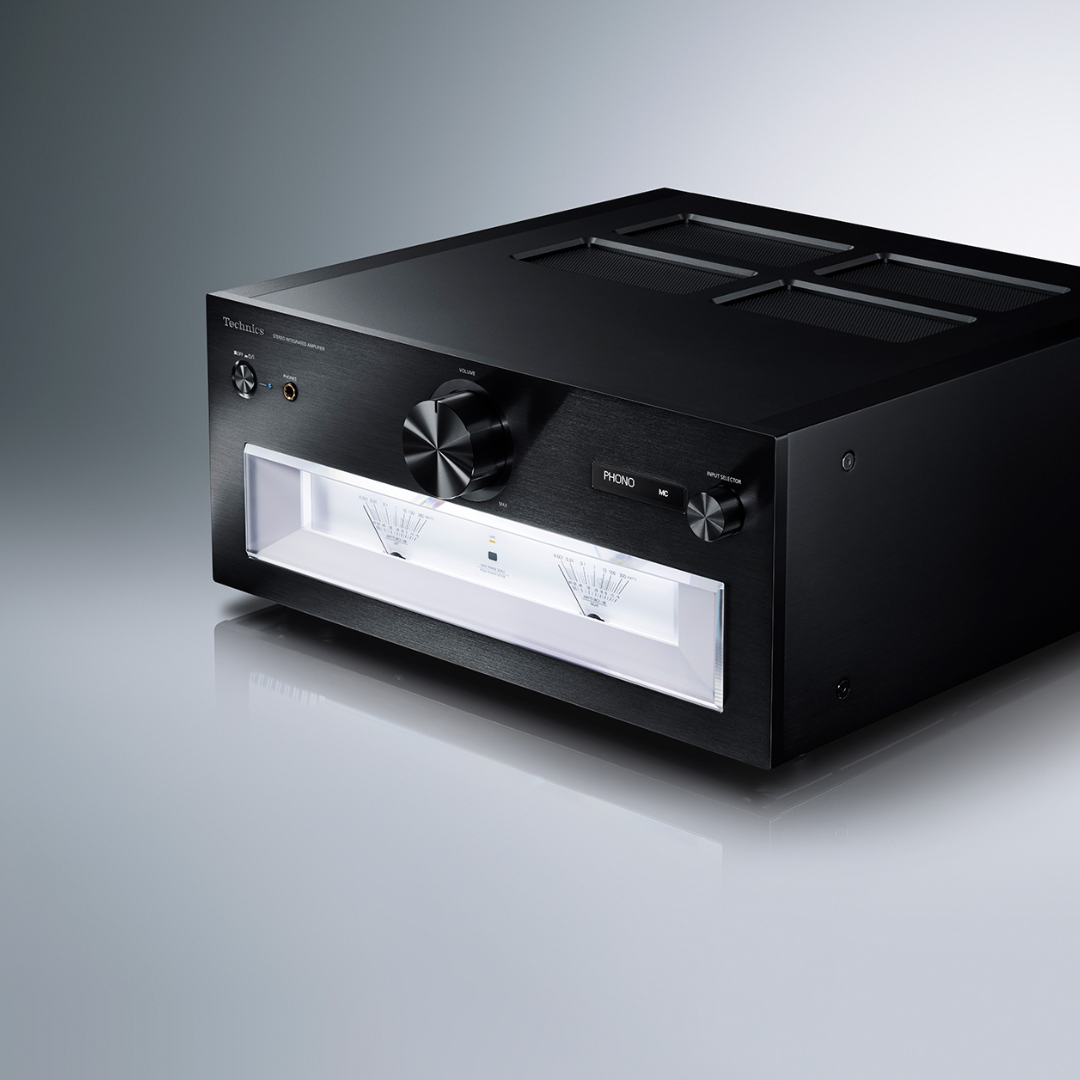

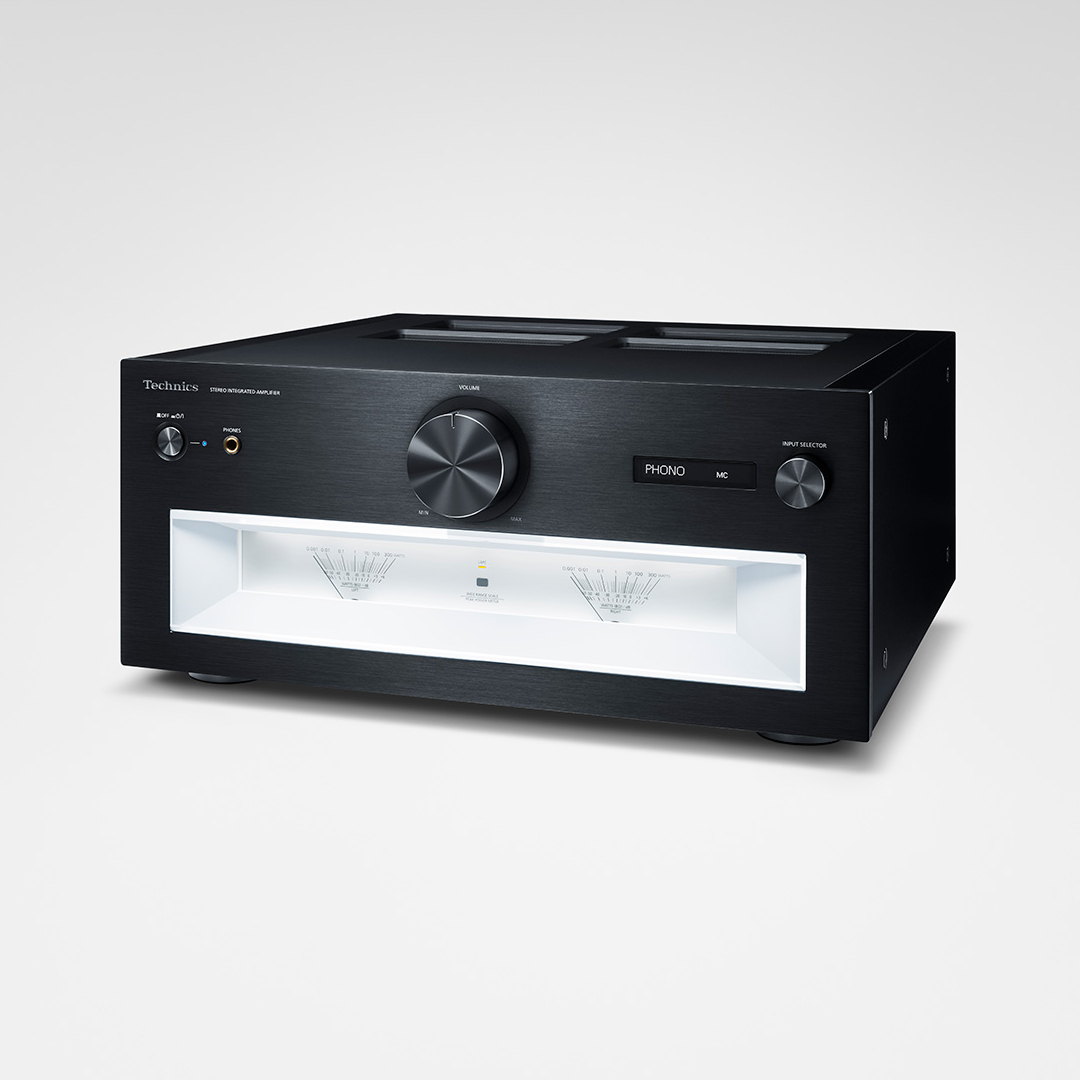

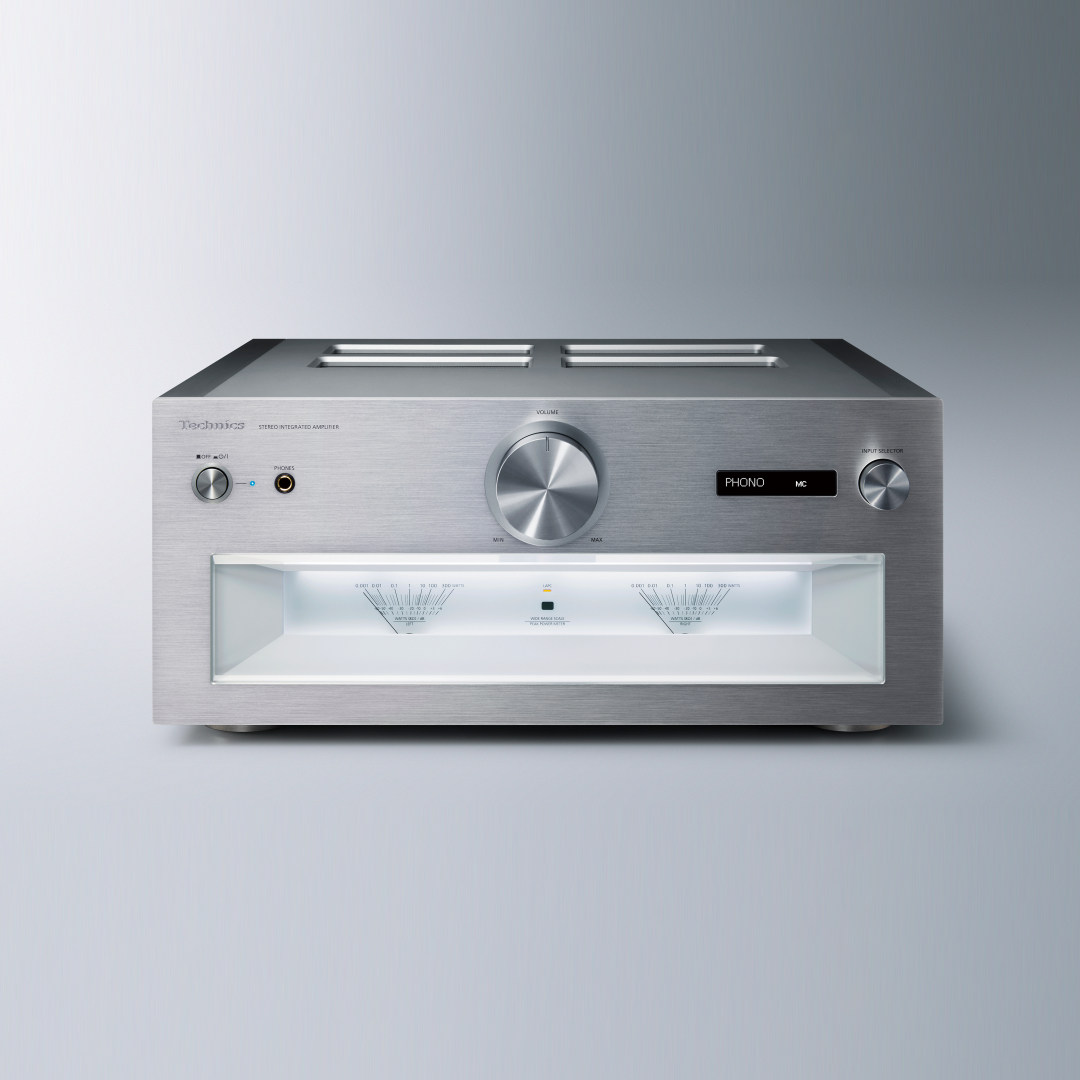

Technics SU-R1000 – Amplificador

O primeiro amplificador digital integrado da serie Classe de Referência.
Tecnologias como LAPC, JENO ou ADCT enriquecem a qualidade do som.

Incorpora também uma entrada phono inteligente.

Accurate Digital Technology:

JENO Engine (Jitter Elimination and Noise-shaping Optimisation)
LAPC (Load Adaptive Phase Calibration)
Advanced Speed Silent Power Supply
Battery Driven Clock Generator
Noiseless Signal Technology
Advancement of Power Supply

Technics Definitive Design:
High-rigidity Cabinet

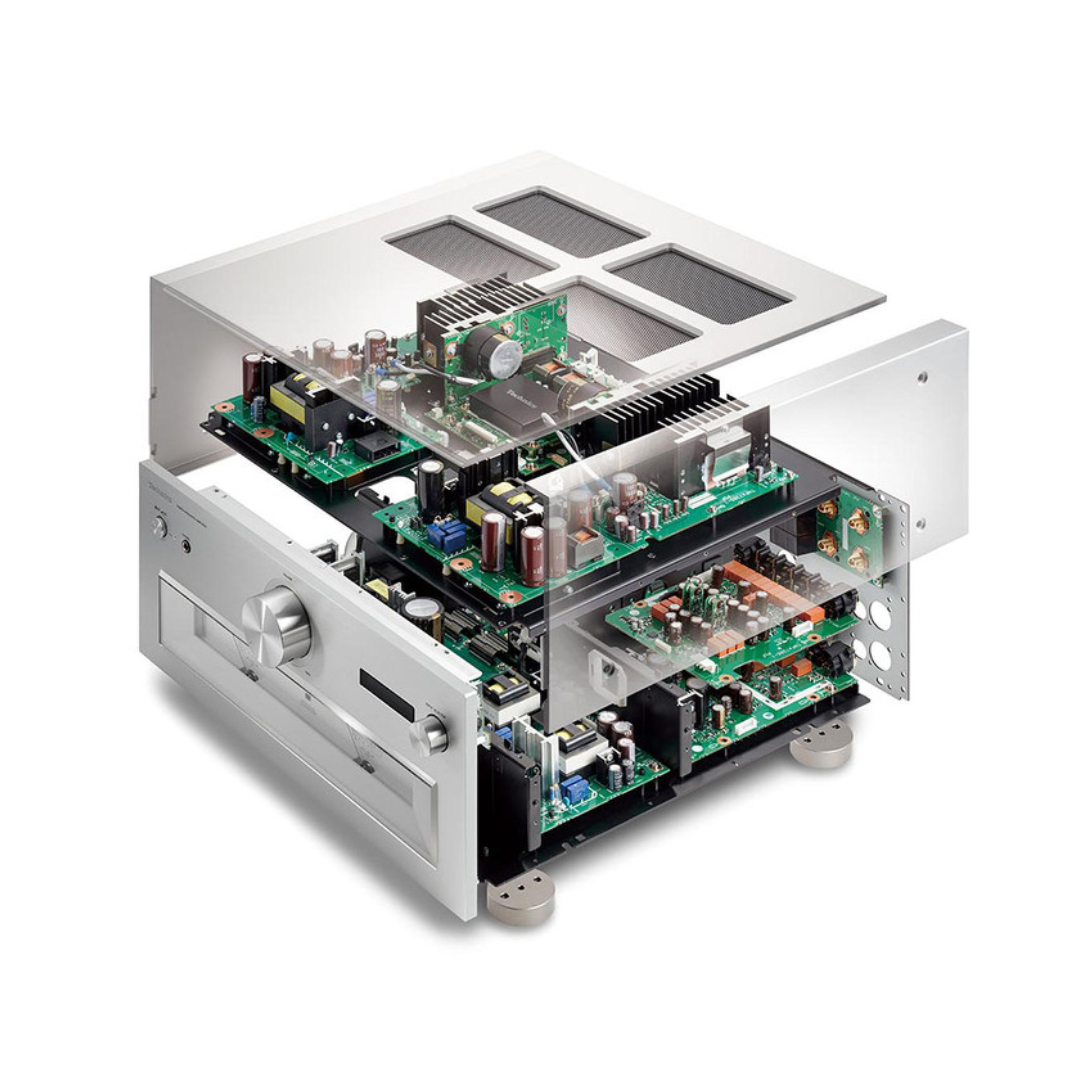

Three-section Configuration

FTC Output Power:
150W + 150W ( 1kHz, T.H.D. 0.5 %, 8Ω, 20kHz LPF ),
300W + 300W ( 1kHz, T.H.D. 0.5 %, 4Ω, 20kHz LPF)

Input Sensitivity / Input Impedance:
LINE 200 mV / 22 kΩ, PHONO (MM) 2.5 mV / 47 kΩ, PHONO(MC) 300uV /100Ω

Frequency Response:
LINE 5 Hz-80 kHz (-3 dB, 8 Ω),
PHONO (MM) 20 Hz – 20 kHz (RIAA DEVIATION ±1 dB, 8 Ω)
DIGITAL 5 Hz – 80 kHz (-3 dB, 8 Ω)

Load Impedance: 4 Ω-16 Ω

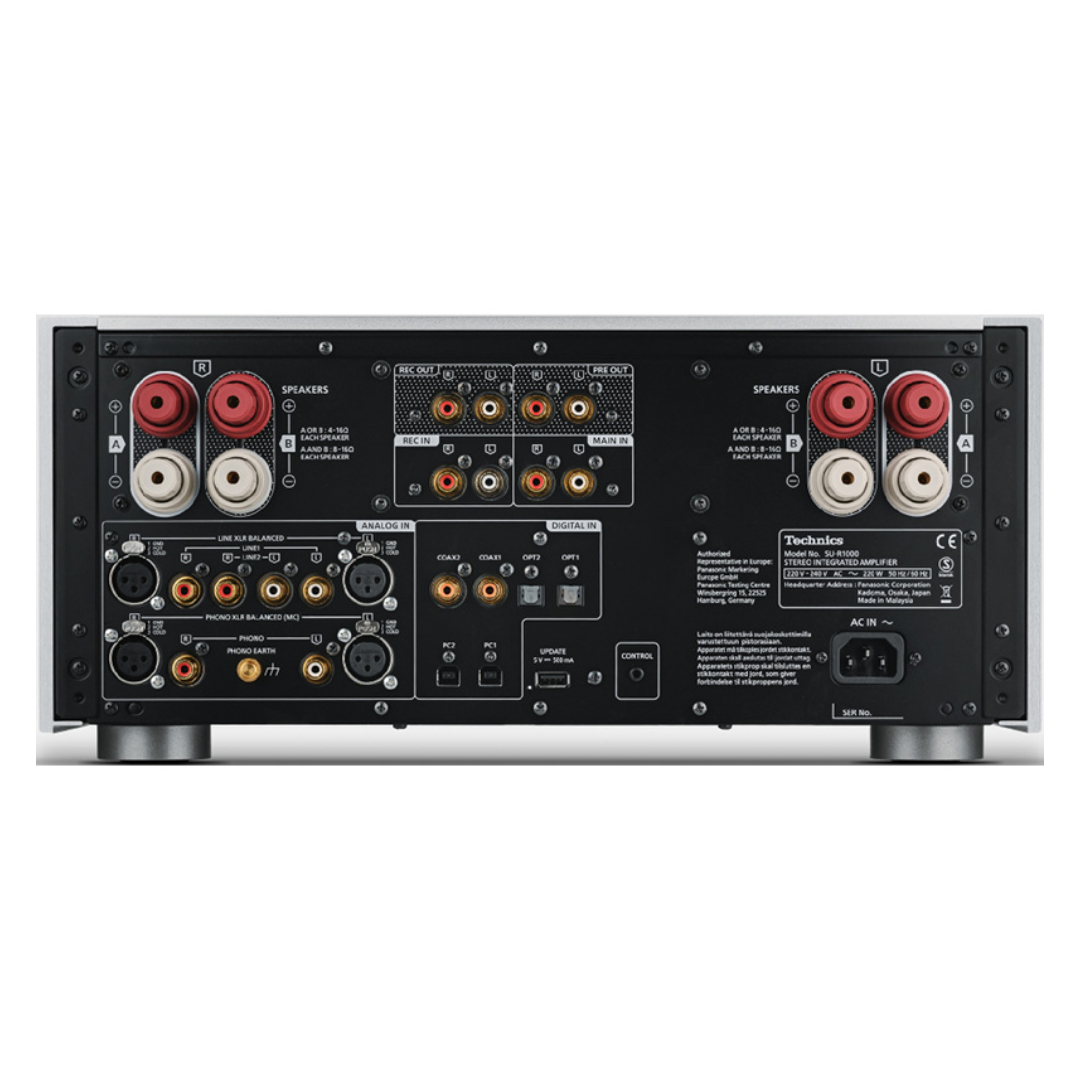

Analogue Input Terminal: LINE x 2 (LINE 1, LINE2), LINE XLR BALANCED x1, PHONO (MM/MC) x1, PHONO XLR BALANCED(MC) x1, MAIN IN x1, REC IN x1

Digital Input Terminal: Optical digital x2 (OPT 1, OPT 2) , Coaxial digital x2(COAX 1, COAX 2), USB-B x2 (PC 1, PC 2)

Analogue Output Terminal: PRE OUTx1, REC OUT x1

Headphone Output: Yes, Stereo Φ6.3mm

support Codec: USB 2.0 high-speed ,USB Audio Class 2.0, Asynchronous mode

Support Codec:
PCM: 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 kHz / 16, 24, 32 bit
DSD: 2.8 MHz, 5.6 MHz, 11.2 MHz, 22.4 MHz* *ASIO Native mode only

Power Supply: AC 220-240 V, 50 Hz / 60 Hz

Power Consumption: 220 W

Dimensions (W x H x D):
430 mm × 191 mm × 459 mm
Weight Approx. 22.8 kg
